Open Micro-Manipulator

We are building an open micro-manipulator after the amazing design of Diffraction Limited (YouTube). He describes is as

This project contains an open source low-cost, easy-to-build motorized XYZ Micro-Manipulator motion control platform achieving submicron precision. It's designed for applications such as optical alignment, probing electronic components, and microscopy.

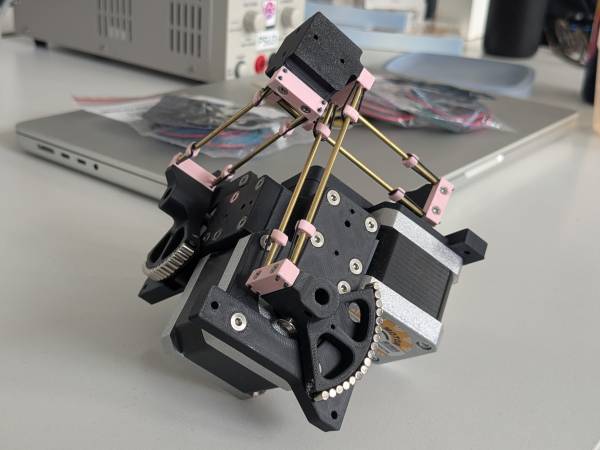

[Work in Progres]

• Upstream Project Documentation: https://github.com/0x23/MicroManipulatorStepper

Assembly arrived in the lab and we finished assembling it.

The chosen stepper motors have too short of an axle which makes the mating parts not sit straight.
